12, 153, 308 Cubic ft

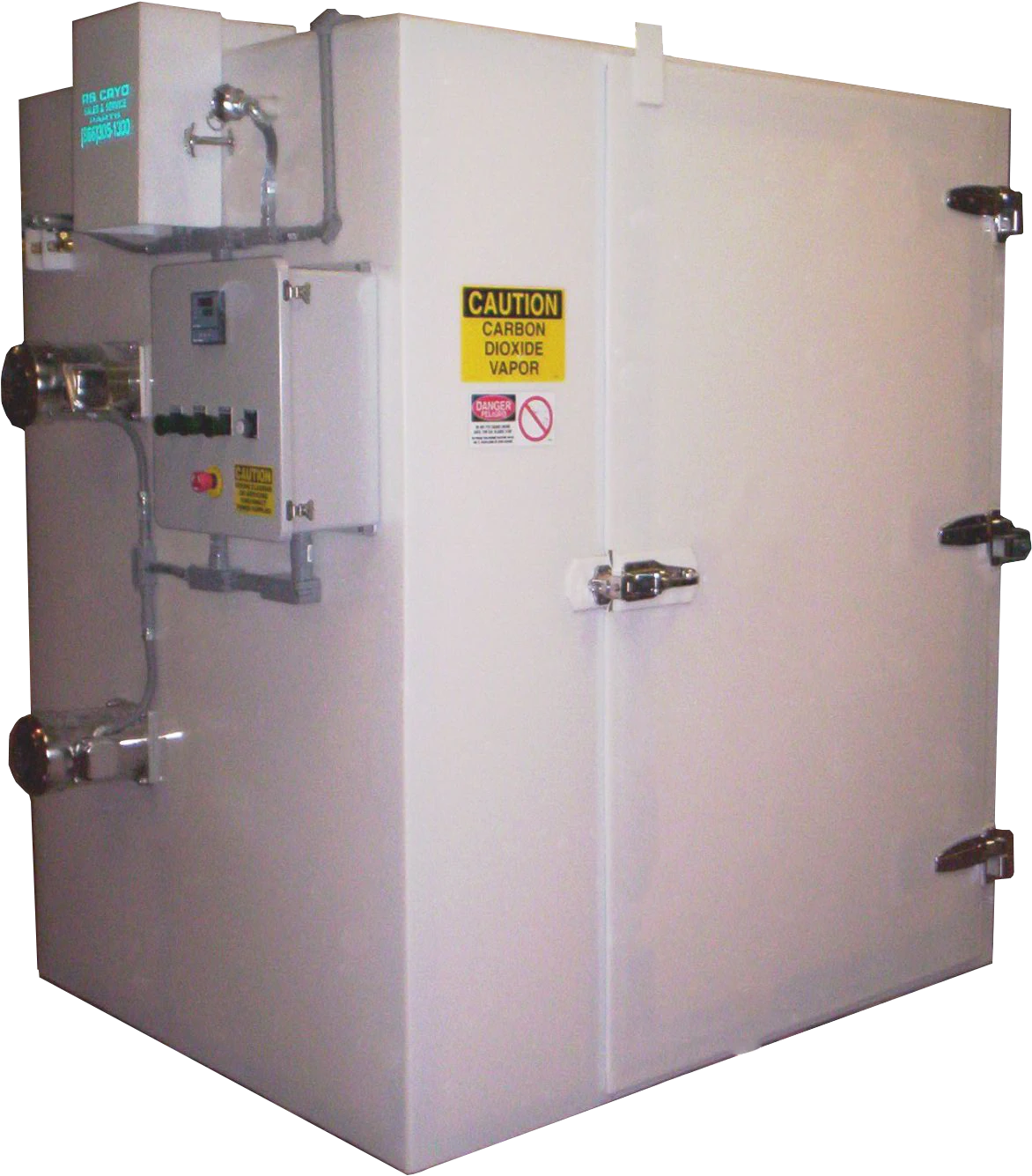

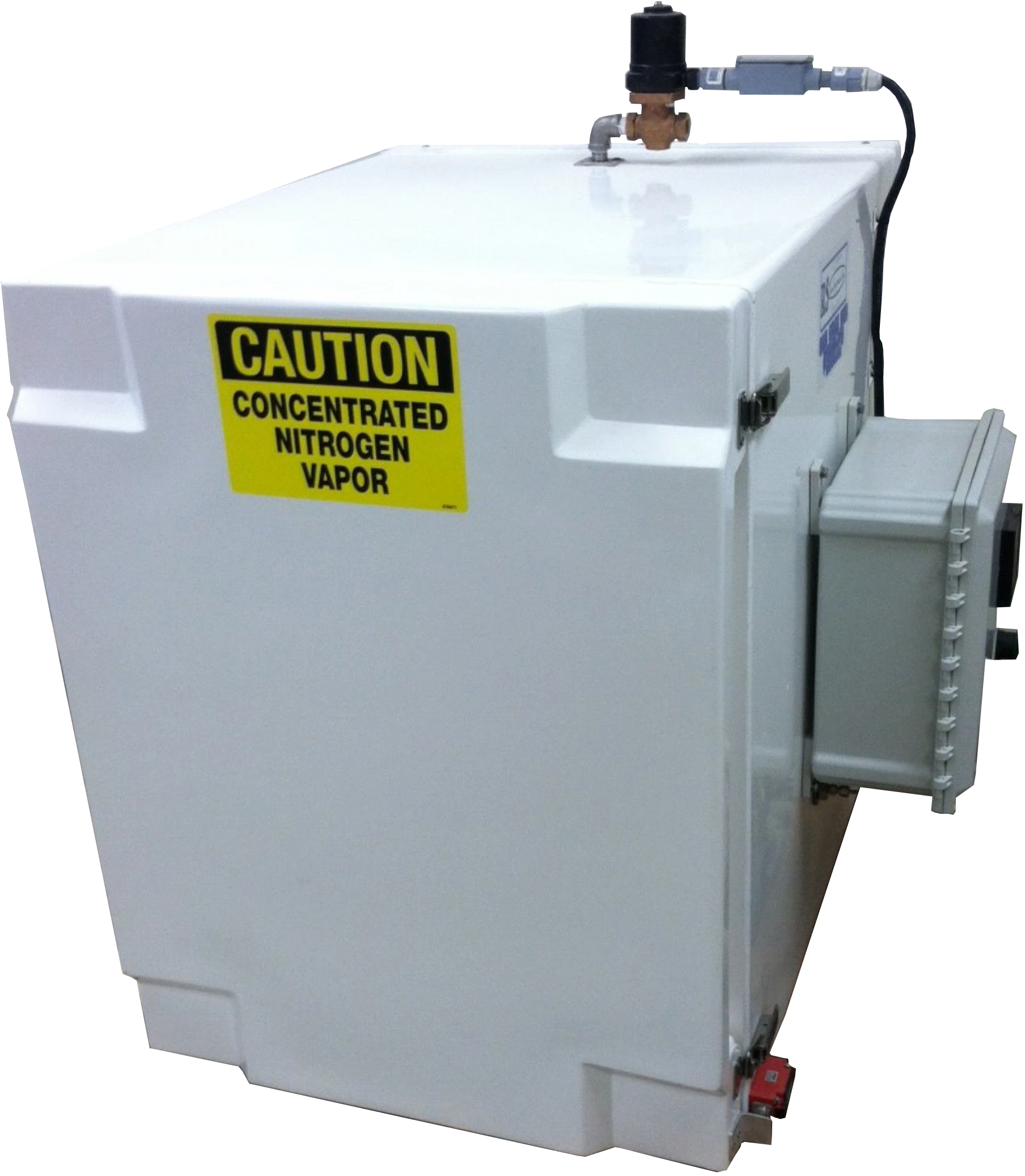

Cabinet Freezer
Cabinet Freezer Basics
- Cryogenic Cabinet Freezers are used for Discontinuous Freezing
- Cabinet Freezer can run on Nitrogen or CO2
- Controlled injection of cryogenic gas lowers the temp in the Cabinet Freezer as the Nitrogen or CO2 immediately evaporates.
- Latent heat of evaporation is the main source of cooling energy
- Fans spread Nitrogen or CO2 in the Cabinent Freezer in a controlled way & efficiently transfers the cold to the product's surface.
- The Cabinet Freezer's outer and inner shell is a white gel-coated fiberglass
- Insulation is 3" thick closed cell polyurethane foam & insulated door
- Normally operator loads product on bakers rack with wheels, then pushes bakers rack into the freezer
- Starting as low as $5,705.24 or Finance as low as $000/mo
Cabinet Freezer Dimensions (W x D x H)
Cooler | Internal Dimensions | External Dimensions |
---|---|---|
12 CF | 21.5" x 29" x 31" | 39" x 42" x 40" |
153 CF | 59.25" x 57.25" x 78" | 59.25" x 116" x 78" |
308 CF | 87" x 63" x 90" | 87" x 148" x 90" |
